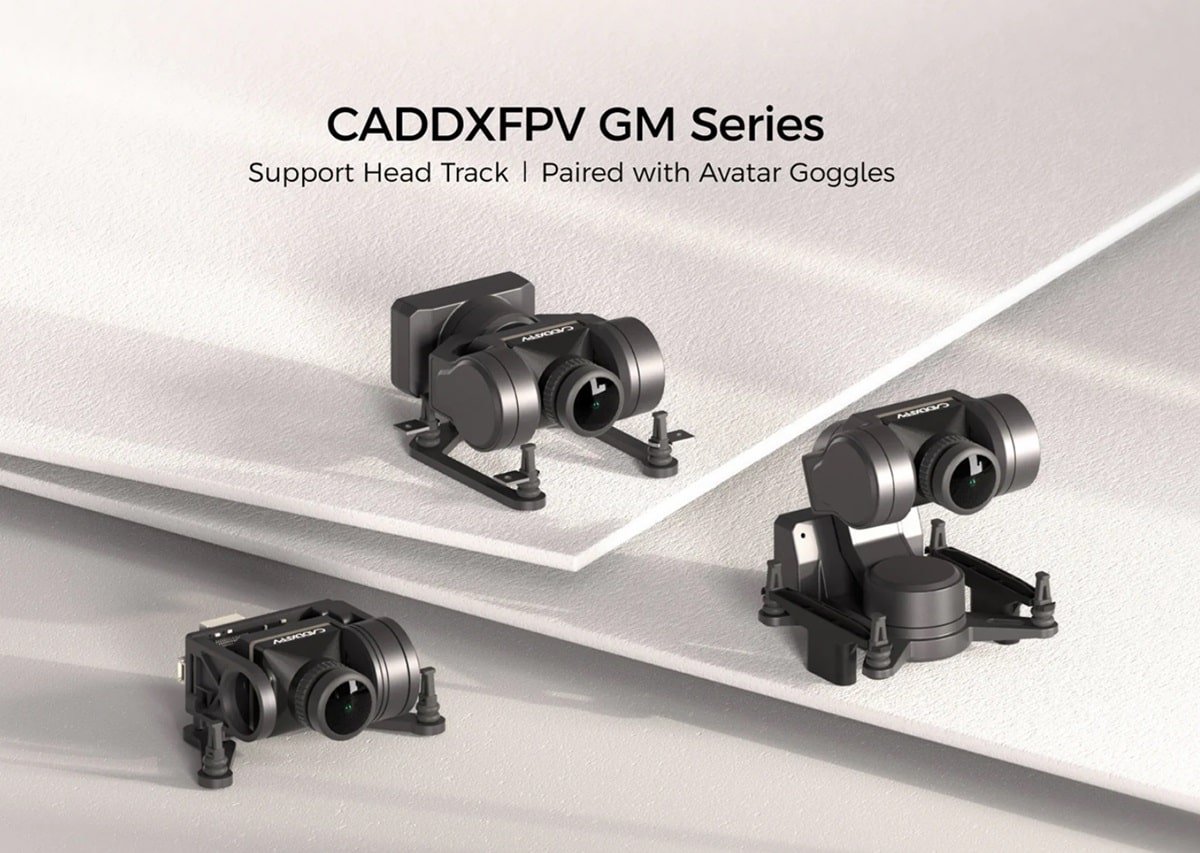

To make the Walknsaill Avatar HD digital FPV system, even more attractive, CaddxFPV released three new compatible gimbals. The GM stabilizer series are compatible with 19mm Avatar HD FPV cameras and Walksnail VTXs. Paired with the Walksnail Goggles X allows head tracking (the camera follows the movement of your head).
No matter if you are using an FPV drone, RC FPV Wing, or RC car, CADDXFPV GM gimbal series provides the perfect solution to obtain stabilized footage. Whether you’re a professional pilot or an amateur enthusiast, The flexibility of CADDXFPV gimbals ensures they can meet the demands of any FPV application.
The GM1 offers one-axis stabilization, the GM2 two-axis, and the most advanced GM3 tri-axis. All three CaddxFPV GM gimbals can be controlled via PWM and UART signals.
All three Walksnail gimbals are intended to be soft mounted and can be powered from 7 to 26V (2-6S LIPOs).
CaddxFPV GM1 vs GM3 vs GM3 comparison table
The GM1 gimbal has only one motor allowing only minor stabilization and remote tilt angle adjustment. The GM2 has two motors and allows better stabilization. The GM3 has three motors, and stabilize on all axis providing super-smooth footage.
| CaddxFPV GM1 | CaddxFPV GM2 | CaddxFPV GM3 | |
| Camera Compatibility | 19mm FPV Camera | 19mm FPV Camera | 19mm FPV Camera |
| Number of axis | one (tilt) | two (tilt and roll) | three (tilt, roll, and pan) |
| Image Stabilization | ±0.005° | ±0.005° | ±0.005° |
| Max Controllable Speed | ±1500°/s | ±1500°/s | ±1500°/s |
| Max Controlled Rotational Range pitch: | ±120° | Pitch: ±120° Roll: ±60° |
Pitch: ±120° Roll: ±60° Yaw: ±160° |
| Control mode | PWM/UART | PWM/UART | PWM/UART |
| Input voltage | 7~26V | 7~26V | 7~26V |
| Power usage | 1.0W | 1.2W | 1.5W |
| Size | 32.2×38.1×20.5mm | 32.2×38.1×20.5mm | 32.2×38.1×20.5mm |
| Weight | 16g | 30g | 46g |
| Price | $54.99 | $69.99 | $144.99 |
