Caddx Nebula Nano FPV camera for VISTA HD VTX

Caddx Nebula Nano

The Caddx Nebula Nano camera was specially designed to work with the Caddx VISTA HD VTX and DJI FPV Air Unit. Thanks to its small size (only 14 x 14 x 21mm) can be successfully installed on compact FPV drones. In case of needed, the size of the camera can be extended to 19 x 19 mm with the included frame.

Its 1/3′ inch CMOS image sensor paired with a 2.1mm lens offers a 150-degree field of view.

It is available in two colors (black and silver) and can be purchased alone for $36.99 or in a bundle with VISTA HD VTX for $125. According to your needs, you can opt for 8 or 12CM coaxial cable.

Caddx Nebula Nano FPV camera features

  • Licensed by DJI;
  • Super compact and lightweight;
  • Compatible with Caddx VISTA HD video transmitter and DJI FPV Air Unit;
  • 1/3″ CMOS image sensor with 2.1mm lens;
  • Low latency (only 32ms at 4Km);
  • Optional size extension bracket (from 14 x 14mm to 19 x 19mm);
  • Available in black and silver colors.

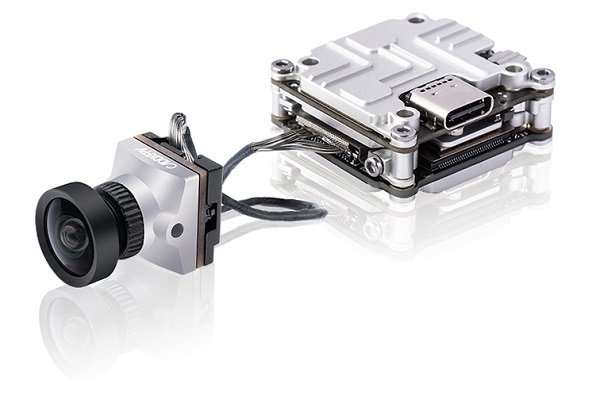

Design of Caddx Nebula Nano camera

Caddx Nebula Nano vs DJI FPV camera

As you can see in the comparison table below, the Caddx Nebula Nano is much smaller than the DJI FPV camera and also significantly lighter. The rest of the specs of these two FPV cameras are very similar.

  Caddx Nebula Nano DJI FPV camera
Image sensor 1/3” CMOS 1/3.2” CMOS (4MP)
Lens 2.1 mm, f/2.1 2.1 mm, f/2.1
FOV 150°(D); 122°(H); 93°(V) 150°(D); 122°(H); 93°(V)
Shutter Rolling shutter Rolling shutter
ISO speed NA 100-25600
Size 14 x 14 x 21mm 22.1 × 21.1 × 20.1 mm
Weight 4.5 grams 8.2 grams

Wiring diagram (pin-out)

Wiring diagram for Caddx Nebula Nano camera
