Coming soon: GepRC SKIP HD 3″ FPV race drone

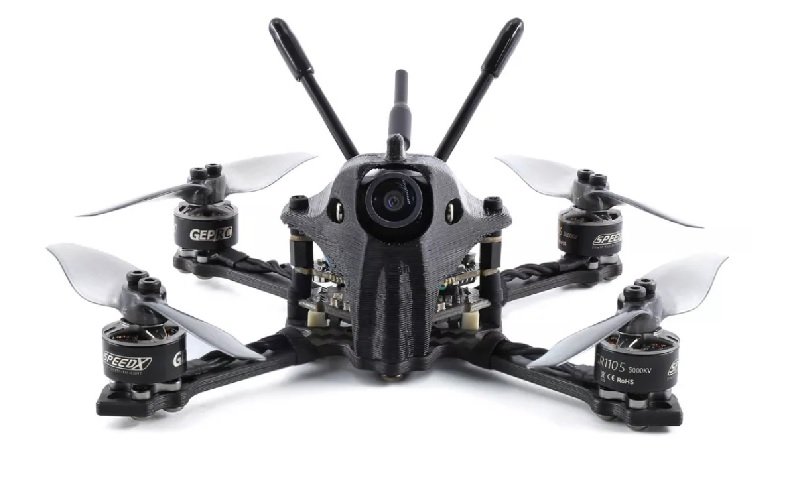

Geprc SKIP HD 3" FPV Race drone

The GepRC SKIP HD is a new toothpick style 3 inch FPV FPV race drone. All the electronic parts are 3s and 4s battery rated. The product specs says that with a 450mAh battery you can obtain about 5 minutes of flight time.

The brain of the GepRC SKIP HD is an all-in-one flight controller with builtin 12A ESC. The 118mm air-frame is made from strong 3K carbon fiber. At the end of each 2.5mm arm there is a GEPRC 5000KV motor with 2-leaf propeller.

GepRC SKIP HD features & specs

  • 118mm 3K carbon fiber frame (3″ prop compatible) with canopy;
  • Toothpick style design;
  • AIO GEP-12A-F4 Flight Controller – ESC;
  • Noise reduction capac
  • GEPRC GR1105 5000KV 3-4S brushless motors;
  • 2-leaf propellers;
  • 5.8G FPV transmitter (25/100/200mW VTX power);
  • Caddx Baby Turtle V2 1080P Camera;
  • 3S and 4S LIPO compatible (450mAh suggested).

Geprc SKIP HD main parts details

GepRC Skip Flight controller specs

Flight Controller controller specs

  • MCU: STM32F411;
  • IMU: MPU6000 gyro/accelerometer (SPI);
  • OSD: BetaFlight OSD w/ AT7456E chip;
  • Baro:NO;
  • BEC Output: 5V@1A;
  • Integrated LC Filter;
  • Firmware target: MATEKF411;
  • ESC MCU: BB21F16G;
  • Continuous current: 12A;
  • Input:2-4s lipo;
  • Supports Dshot600 ,Oneshot,Multishot;
  • Current meter: 210;
  • Target: G_H_30;
  • Size: 28.5×28.5mm (M2 mounting holes 25.5×25.5mm);
  • Weight: 5.6 grams.

GR1105 5000KV Motor specs

  • Item name: GR1105 5000KV 3-4S Brushless Motor;
  • KV: 5000KV;
  • No.of Cells(Lipo): 3-4S;
  • Configuration: 9N12P;
  • Stator Length: 1.9mm;
  • Shaft Diameter: 1.5mm;
  • Motor (Dimension (Dia.*Len)): Φ 14.2*16mm;
  • Rotor: N52H arc magnets;
  • Weight: 6 grams.

Caddx Baby Turtle V2 1080P Camera specs

  • Image sensor: 1/2.7″ CMOS sensor;
  • Horizontal: 800TVL;
  • TV system: NTSC/PAL,changeable;
  • Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps;
  • Power Input: DC 4.5-20V;
  • FPV FOV: 155°;
  • Recording FOV: 170°;
  • Mini Illumination: 0.01lux;
  • Image Resolution: 2 Megapixels;
  • Lens: 1.8mm Turbo Eye Lens;
  • Working Current: 380mA@5V/160mA@12V (low consumption);
  • OSD Menu: Yes (Support Voltage Display);
  • Video Files: MP4;
  • Audio: Support;
  • Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100;
  • S/N Ratio: >60dB (AGC OFF);
  • Video Output: CVBS;
  • Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class ;
  • 10/UHS-I/UHS-II);
  • Weight: 12 grams.
