Coming soon: Happymodel Larva X 100mm

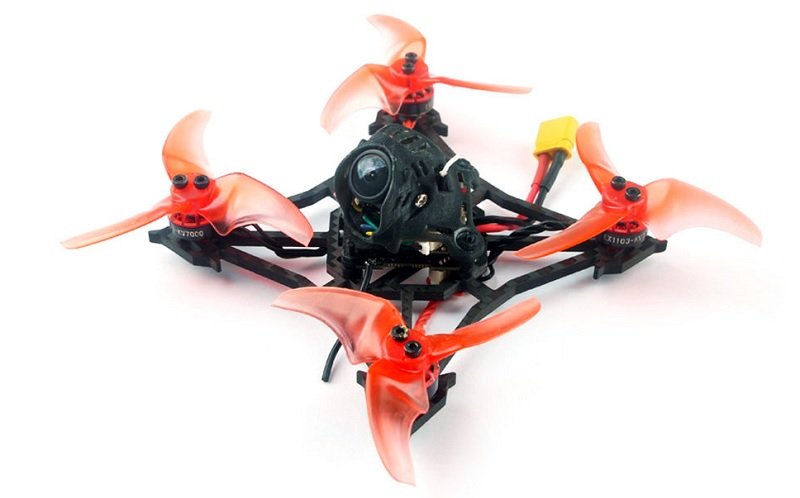

Happymodel Larva X 100mm FPV drone

Happymodel is planning to release a new small-sized FPV drone called Larva X100. As its name says, it adopts a true-X frame with a 100mm wheelbase. The Happymodel Larva X quadcopter is 2.5″ propeller compatible and can be powered by 2s~3s LIPO batteries. The aircraft weighs about 50 grams without a battery.

Thanks to the versatile Crazybee F4 Pro V3 flight controller, you can configure the Happymodel Larva X 100mm with multiple flight modes (Angle, Horizon, and Acro). According to your existing transmitter, you can opt for a built-in DSM2/DSMX, FlySky, FrSky D8, or TBS Crossfire radio receiver.

HappyModel Larva X features & specs

  • 100mm size carbon fiber frame with a protective canopy;
  • 2.5-inch propeller compatible (Micro Avan Rush 3-leaf);
  • Crazybee F4 Pro V3 flight controller with optional built-in radio receiver;
  • BetaFlight OSD support;
  • On-board 10A 4in1 ESC;
  • 1103/KV7000 brushless motors;
  • Happymodel Diamond FPV transmitter (25~200mw VTX power, SmartAudio ready);
  • RunCam NANO2 FPV Camera with angle adjustment;
  • 2-3S LIPO compatible (2S/450mAh or 3S/300mAh-350mAh compatible).

A closer look at HappyModel Larva X 100 main parts

Happymodel Larva X main parts

Crazybee F4 Pro V3 flight controller specs

  • MCU: STM32F411CEU6 (100MHZ, 512K FLASH);
  • Sensor: MPU-6000 (SPI connection);
  • Power Supply: 2-4S battery input (DC 7-17V);
  • Built-in 10A (each) Blheli_S 4in1 ESC Dshot600 ready;
  • Frsky version Built-in SPI Frsky receiver with telemetry (D8/D16 switchable);
  • Flysky version Built-in SPI Flysky receiver with telemetry (AFHDS/AFHDS2A switchable);
  • No RX version need to add an external Receiver;
  • Built-in BetaFlight OSD (SPI Control);
  • Built-in Current meter Max 70A;
  • Current meter scale set to 470;
  • Built-in 5V 1A BEC;
  • Built-in voltage detection;
  • Board Size: 28.5x 28.5mm.

Onboard 10A 4in1 ESC specs

  • MCU upgraded to EFM8BB21;
  • Power supply: 2-4S LiPo/LiPo HV (7v/17v);
  • Con. Current: 10A;
  • Burst Current: 12A (5S);
  • Support BLHeliSuite programmable;
  • Factory firmware: F_H_40_REV16_5.HEX;
  • Default protocol: DSHOT600.

Happymodel Diamond VTX specs

  • Output power: 25~200mw switchable;
  • Frequency: 40CH;
  • Input voltage: 3.3V~5.5V;
  • Current consumption: 250mA~510mA (type);
  • Antenna: RG178 antenna;
  • U.FL interface;
  • Frequency: 5.8GHz 5bands 40 channels;
  • With Raceband;
  • Smartaudio ready;
  • Weight: 3g without an antenna;
  • Video Output Size: VGA (640×480);
  • Video Output format: NTSC;
  • Record video size : 1280×720 @25FPS;
  • TF Card support: Max.32G;
  • Interface: JST SH1.0 3pin for Camera;
  • JST SH1.0 5pin for Connect with F3/F4 Flight controller;
  • Compress Format: AVI.

Runcam NANO2 FPV Camera specs

  • Image Sensor: 1/3″ CMOS;
  • Horizontal Resolution: 700TVL;
  • Lens: 2.1mm(M8) FOV 155°;
  • Signal System: NTSC / PAL;
  • S/N Ratio: >50dB;
  • Electronic Shutter Speed: Auto;
  • Auto Gain Control (AGC): Auto;
  • Min. Illumination: 0.01Lux@1.2F;
  • D-WDR: Auto;
  • Day/Night: Color;
  • Power: DC 3-5.5V;
  • Current : 110mA@5V 120mA@3.3V;
  • Housing Material: ABS;
  • Net Weight: 3.2 grams;
  • Dimensions: 14 x 14 x 16mm.
